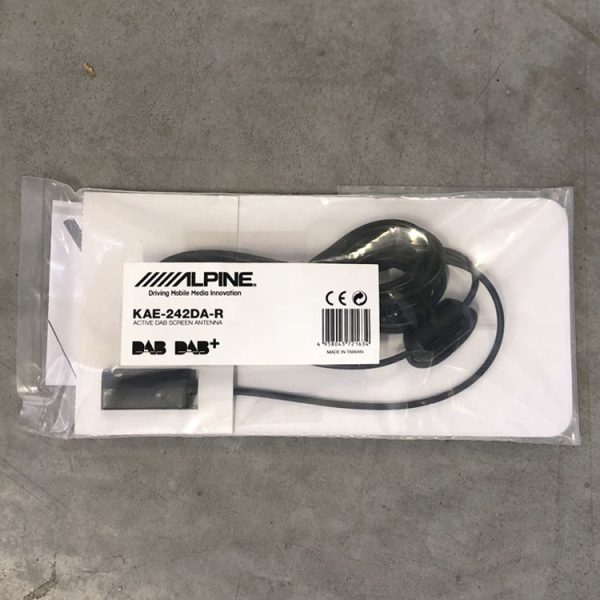

The Alpine KAE-242DA-R is an active DAB/DAB+/DMB screen antenna for automotive use, suitable for all Alpine DAB products.
The output side is fitted with a SMB Connector to suit the majority of DAB+ receivers
OEM quality replacement.
- Structure: Foil type, self-adhesive, asymmetric
- Frequency Ranges band-III/L: 170-240MHz / 1452-1495MHz
- Supply: 5 – 12V (30mA), receiver (phantom) supplied
- Directivity: Omni directive
- Impedance: 50 Ohms
- Connection: 3.5m low-loss cable with angled SMB(f) plug
- Color: Black / transparent
- Dimensions: 40 x 170mm
