Description

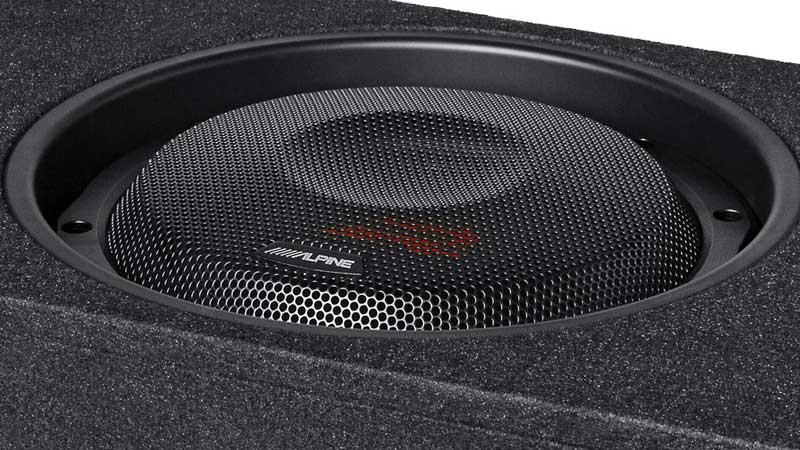

The all-new R-Series shallow profile subwoofers are extreme in every way, commanding a tough and rugged appearance with high performance bass output to match.

Alpine takes compact bass to the next level with a state-of-the-art design coupled engineering innovation to accomplish an ultra-shallow profile without compromising on bass level output and quality in anyway.

An exclusive dual gap motor structure combined with a powerful neodymium magnet allows for high power handling of 600Watts RMS and 1800Watts Max. With its bespoke cast aluminium frame and ground-breaking woofer cone, this design enables an incredibly linear X-max of 20mm ensuring the best possible bass performance.

Alpine’s R-Series Shallow Subwoofers give you the best of both worlds in size and sound.

What’s more, the optional mesh grille KTE-RS12G, exudes a tough look and adds a premium finish to your custom installation, all-while giving your equipment the protection it deserves.

More bass with less space—Alpine’s new Shallow R-Series rise to the top, giving you extraordinary bass performance in an ultra-compact form to suit and fit into virtually any application.

Specifications

• RMS Power Handling: 600W
• Peak Power Handling: 1800W
• X-Max: 20mm
• Nominal Impedance: 2ohms (4ohms+4ohms)
• Frequency Response: 29Hz-200Hz
• Sensitivity: (1W/1M): 83dB
• Voice Coil: 4″ (102mm)
• Mounting Dimensions: 537mm (W) x 133mm (H) x 406mm (D)
