Description

You can only be as good as your source material, and the new HDSP-V series greatly expands your potential for the best possible source material.

The new coaxial and optical inputs accept the digital signal from your head unit or from a portable HD player. The HDSP-V units also have a port for HD Bluetooth streaming (via optional External APTX HD Module). An interactive digital port will expand your options even more. The port accepts the control input from the included Dash Remote so you can change input source, select your song, control the master volume and even control the output of your system’s bass amps. The Zapco graphical user interface adds advanced menus for Input/Output Matrix, Crossover, Delay Polarity, All Pass filter phase and Equalisation.

Advanced Control Display​

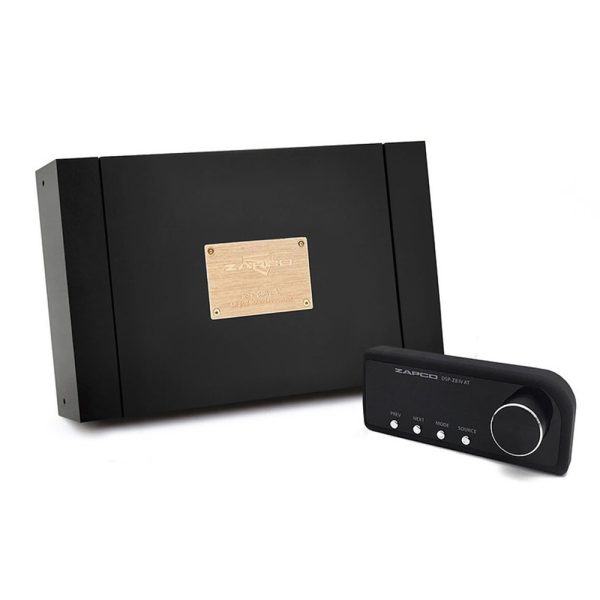

The Player is controlled by an 3” Touch Screen color display. It is housed in an elegant aluminum CNC case and it can also be used to control volume, fader, balance, tone, some set-up of the system, and to switch instantaneously, by touch screen, from different tuning presets (up to 10 memory presets).

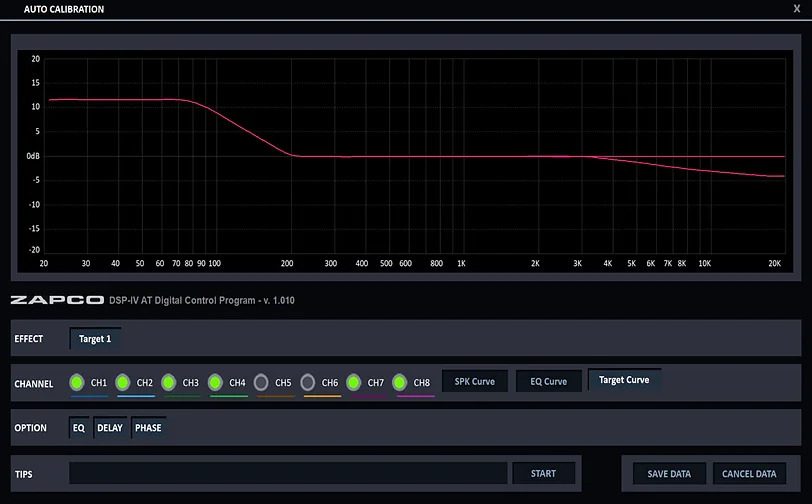

HDSP-V Digital Control Program

The GUI of the DSP-V has been designed to be simple and intuitive for everyone. But that does not mean it’s less sophisticated. It is divided into three main sections which are the front, the rear and the effects. The tuning of the sound of the front seats and the sound of the rear seats provides two different and independent autotuning as well as the tuning of the effects. The main screen provides simultaneous viewing of all 16 channels with all adjustments. It is a summary screen for fine adjustments made channel by channel, while dedicated pages for each major function allow you to focus on one function and conveniently set all the channels together. Auto-tuning guides the different phases starting from the correct connection of all the components, the adjustment of the levels of the amplifiers and of the DSP, all to obtain the best performances in terms of sound quality. For experienced tuners there is also manual adjustment of all functions with maximum adjustment resolution.

• 8 Channels DSP with HD Player
• 8 Analog Inputs (RCA + High Level), 5 Digital Inputs, 8 Analog Outputs
• Modular device: High-end solution with 15 independent PCB
• Player & DSP: All-in-one dual-core processor
• DSP Processor: OMAP L-138 – 2 x 456 MHz, 32 Bit (till 64-bit/IEEE double precision)
• DSP Processor Point: Fixed & Floating
• DSP Sampling Rate: 192 kHz
• Player power: 456 Mhz – Arm 9 32 Bit. Read till 192 KHz/24 bit
• File Audio formats: WAV, AIF, AIFF, FLAC, ALAC, AAC, MP3, Direct.: File or Artist/Album or Title
• USB memory stick support: Formatted FAT32 with limited memory space (2 TB)
• ADC Processor (standard): AK5558, 32 Bit, 784 kHz, 115 dB DNR
• ADC Processor (option B): AK5578, 32 Bit, 784 kHz, 121 dB DNR
• DAC Processor (standard): AK4458, 32 Bit, 784 kHz, 115 dB DNR (*8ch)
• DAC Processor (option B): AK4490, 32 Bit 784 kHz, 120 dB DNR (*8ch, Now Available)
• DAC Processor (option A): ES9038PRO, 32 Bit, 784 kHz, 132 dB DNR (*8ch, Not Available)
• Frequency response: 5Hz @ 90 kHz
• THD+N: 0,0006 (Digital Input), 0,0008 (Analog Input) 1V Out
• S/N Device Floor Noise: -125 dB (from 20 Hz to 20 kHz), -135 dB (from 150 Hz to 20 kHz), -140 dB (average from 80 Hz to 20 kHz)
• S/N Ratio (Digital Inputs): from 115 to 120 dB A
• S/N Ratio (Analog Inputs): from 109 to 115 dB A
• Crosstalk: > 110 dB (from 300 Hz to 0.9 kHz)
• Crosstalk: average 115 dB (from 300 Hz to 0.9 kHz)

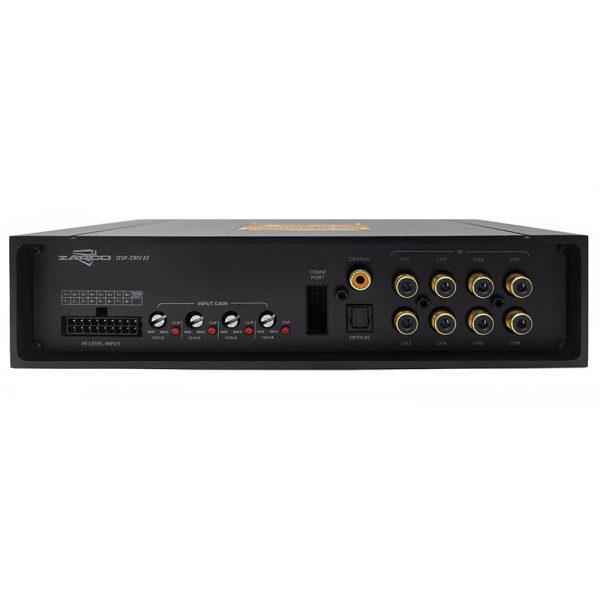

• Analog Inputs: 6/8 x RCA Low Level 1/5 Volt, 8 x High Level 4/20 Volt
• Digital Inputs: Optical: 24 Bit – 192 KHz, SPDIF: 24 Bit – 192 KHz, 3 x i2S: 24 Bit – 192 KHz

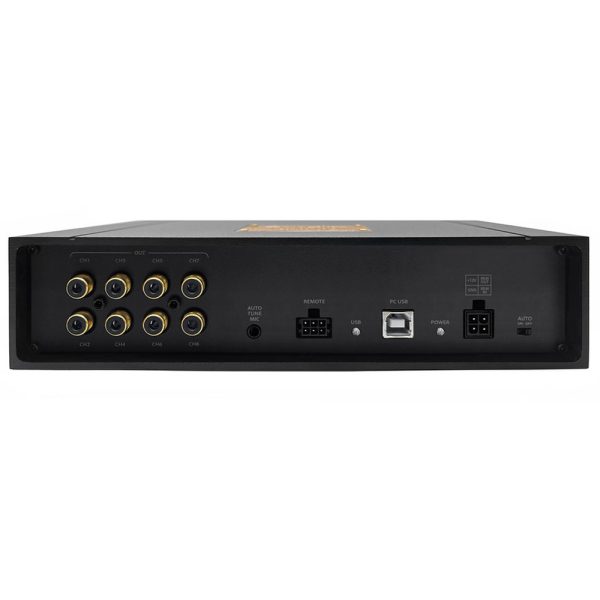

• Analog Outputs: 8 x RCA, 4 Volt (5 KOhm), Impedance: 100 Ohm
• DashBoard: 3″ Touch Screen, 10 Preset
• DashBoard Control: Volume/Balance/Fader/Tone
• Wireless Control: Wi-Fi External Module (incl.)
• BT Streaming: External APTX HD Module (opt.)
• Tuning: Easy and Expert, “Double Front”
• I/O Setup: 2ch, 4ch, 6ch, 8ch, OEM SUM, AUX
• Digital Input Mode: HD, Optical, Coax, i2S 1, 2, 3
• EQ Parametric 15 poles
• XO Filters: Linkwitz, Butterw., Bessel, Tsecheb.
• Phase Filter: All channels 1Hz/1 Degree step
• VSEQ Filter: 50-200 Hz – 1 Hz step
• Power Supply: Operating: 6-16 Volt, Current Draw: 750 mA/14.4 V, Fuse: 1A
• Stop-Start ignition system support
• Main unit overall dimensions (mm): 217(L) x 164(W) x 57(H)
• DashBoard dimensions (mm): 111(L) x 16(W) x 49(H)
