Description

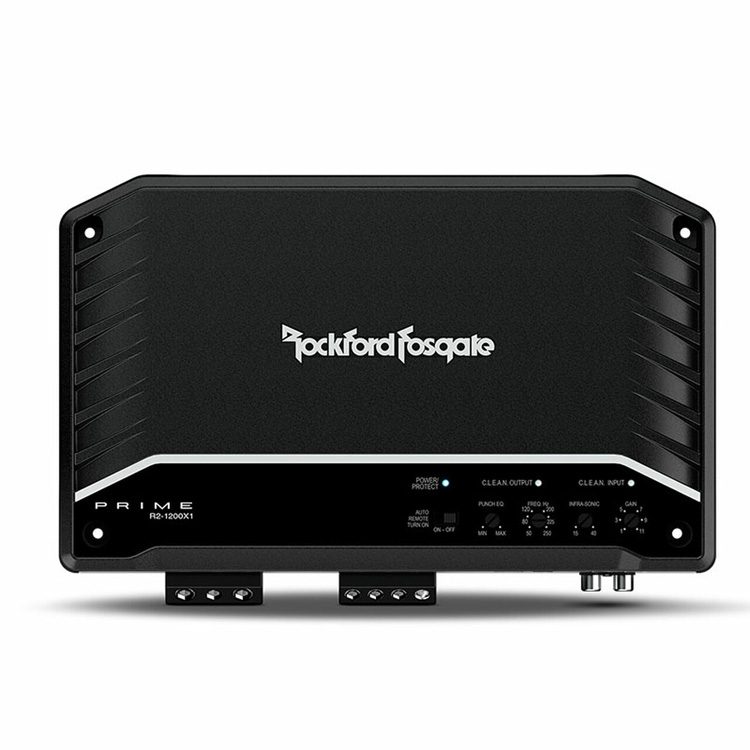

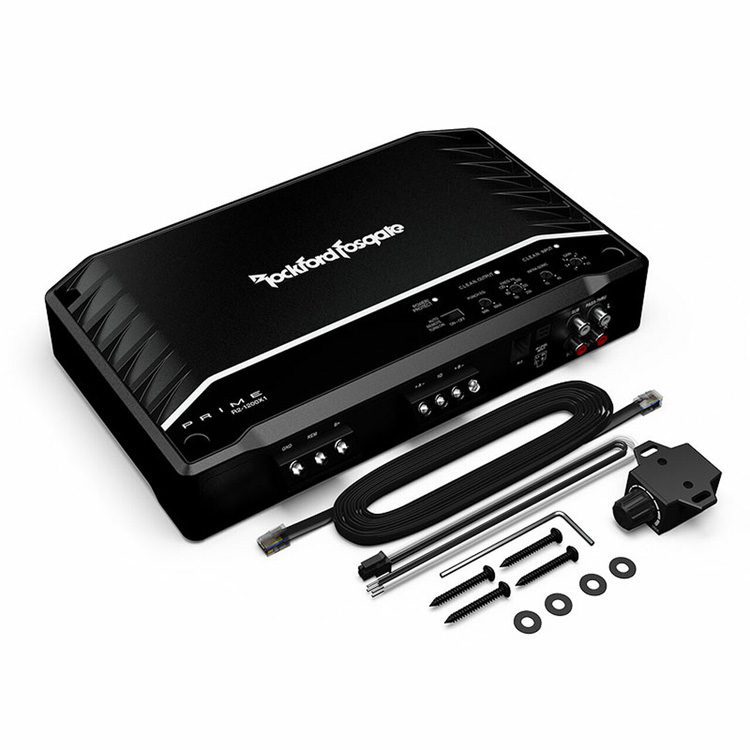

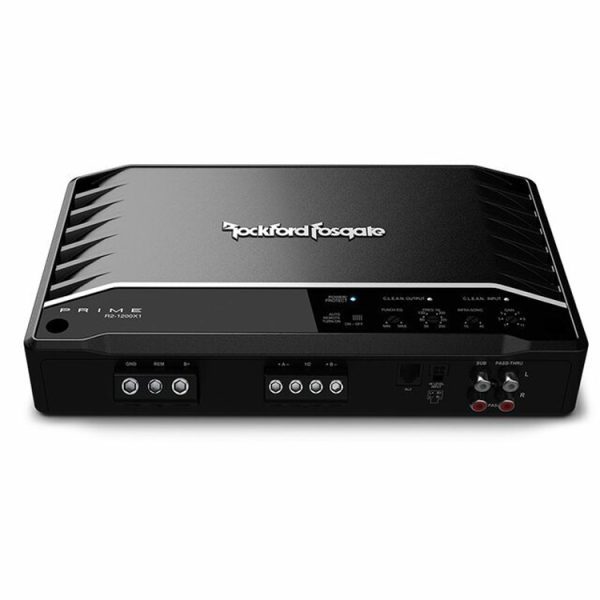

Primed for Performance, the R2-1200X1 is a 1200 watt, class-D amplifier, capable of operating at 4Ω, 2Ω or 1Ω mono. This amplifier is extremely efficient because of its Class-D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass. For subwoofers, a variable infrasonic filter and remote level control allows you to tune the bass for the desired level for the music.

Specifications

• CEA-2006 Compliant
• CEA-2006 Power Rating = 400W x 1 @ 4Ω
• ≤1.0% THD+N
• Number of Channels 1
• Total Power (Sum of Rated Power) 1200 Watts
• Rated Power (RMS Continuous Power) 400 Watts x 1 @ 4Ω / 800 Watts x 1 @ 2Ω / 1200 Watts x 1 @ 1Ω
• Dynamic Power (PVC/PowerCube®) 489 Watts x 1 @ 4Ω / 889 Watts x 1 @ 2Ω / 1389 Watts x 1 @ 1Ω
• Frequency Response 20 Hz – 250 Hz
• Input Sensitivity Low-Level: 150 mV – 4 V / High-Level: 450 mV – 12 V
• Circuit Topology Class Class D
• Total Harmonic Distortion (THD+Noise) 4Ω: <1.0% / 2Ω: <1.0% / 1Ω: <1.0%
• Signal Input Low-Level: 2 RCA / High-Level: 4-Pin Molex
• Signal Output Low-Level: 2 RCA
• Tone Controls 0 to +18 dB @ 45 Hz
• Crossover Controls Low-Pass: 50 Hz – 250 Hz @ 12dB/Octave Butterworth / Sub Infrasonic: 15 Hz – 40 Hz @ 12dB/Octave Butterworth
• Remote Control
• Visual Indicators Power/Protect / C.L.E.A.N. In / C.L.E.A.N. Out
• Power Wire Gauge 4 AWG
• Power Input Connector Compression Terminal Block
• Speaker Wire Gauge 8 AWG
• Speaker Output Connector Compression Terminal Block
• Operating Voltage 9 – 16 VDC
• Recommended Fuse (not included) 200 A
• Average Current Draw (13.8V Music)
• Max. Current Draw (13.8V Sinewave) 121 A
• Dimensions (H x W x D) 1.9″ x 6.8″ x 11.3″ (4.9 cm x 17.3 cm x 28.5 cm)
