Description

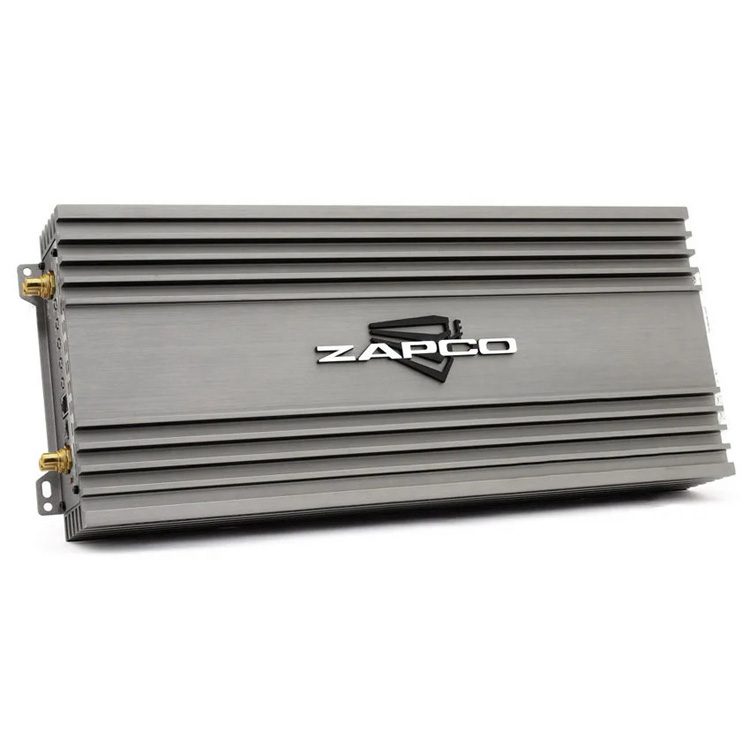

Zapco Z-II Series Class D Competition Bass Amps now include:

A beefed up power supply • Increased power • New high end audio caps like the SQ amps

New TI low noise op-amps like the SQ amps • Improved tiffany style panel mount RCA connectors

The end plates are now recessed like the LX amps for a cleaner look.

The plastic controls have been replaced by the new metal pots and switches. The new pots also have detents (like the SP amps) at 40ea so you can accurately set crossovers and gains identical with multiple amplifiers.

Features and Functions

• Mono Class D Linkable, bass amplifier,

• Stable into 1 Ohm (2 Ohm w/2 amps Linked/Strapped)

• PWM MOSFET power supply

• 24 dB Variable low pass (LPF) crossover

• 12 dB Variable bass boost equalization

• 0 – 180 degree variable phase shift

• 24 dB Variable subsonic filter

• Selectable master and slave operation for Linked (strapped) amplifier operation.

Specifications

• Power @ 4Ω: 800 watts

• Power @ 2Ω: 1400 watts

• Power @ 1Ω: 2100 watts

• Linked @ 2Ω: 3600 Watts

• THD @ Rated Power < 0.05%

• Signal to Noise Ratio > 90dB

• Damping factor: > 350

• Efficiency: 86%

• Input Sensitivity .2v to 8v

• Dimensions in mm: 190(W) x 62(H) x 450(L) Overall: 190(W) x 62(H) x 486(L)
